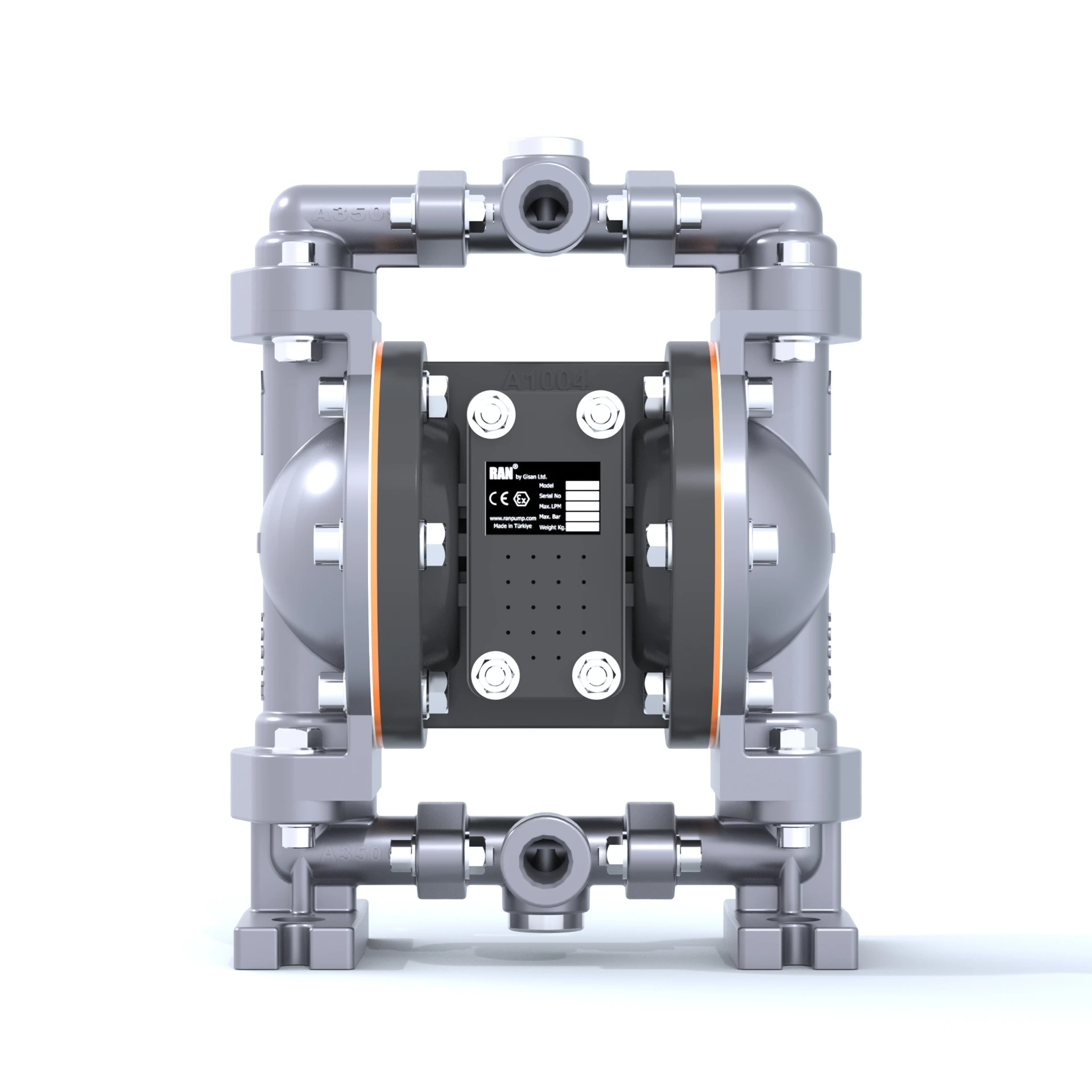

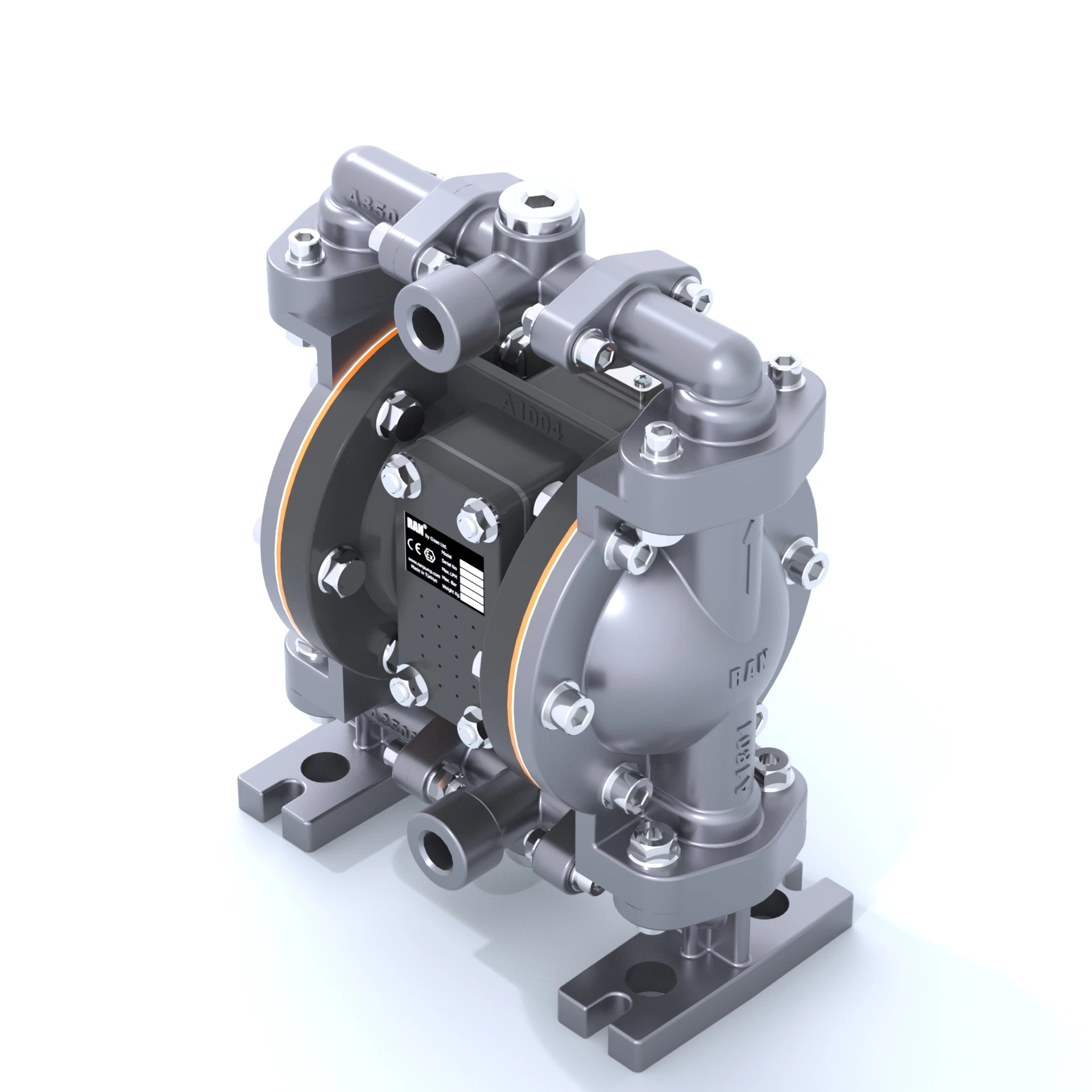

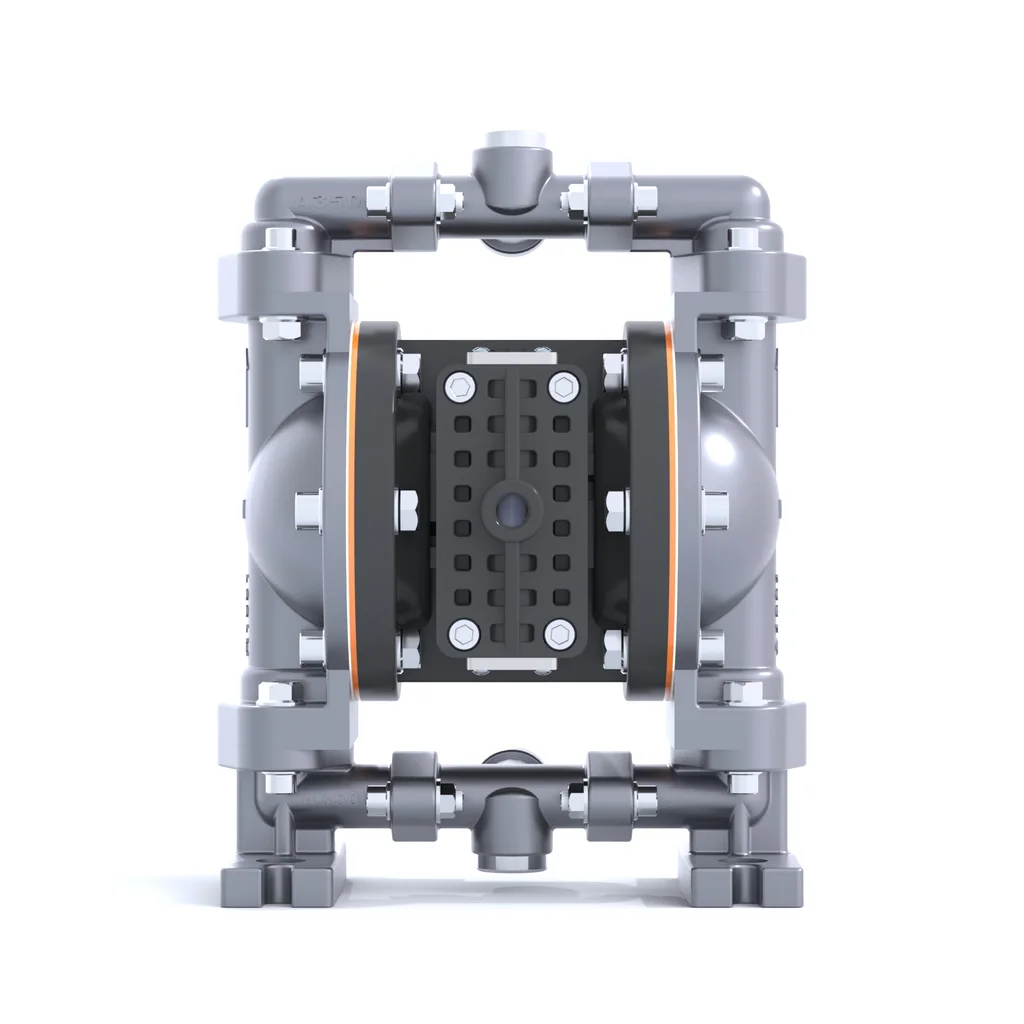

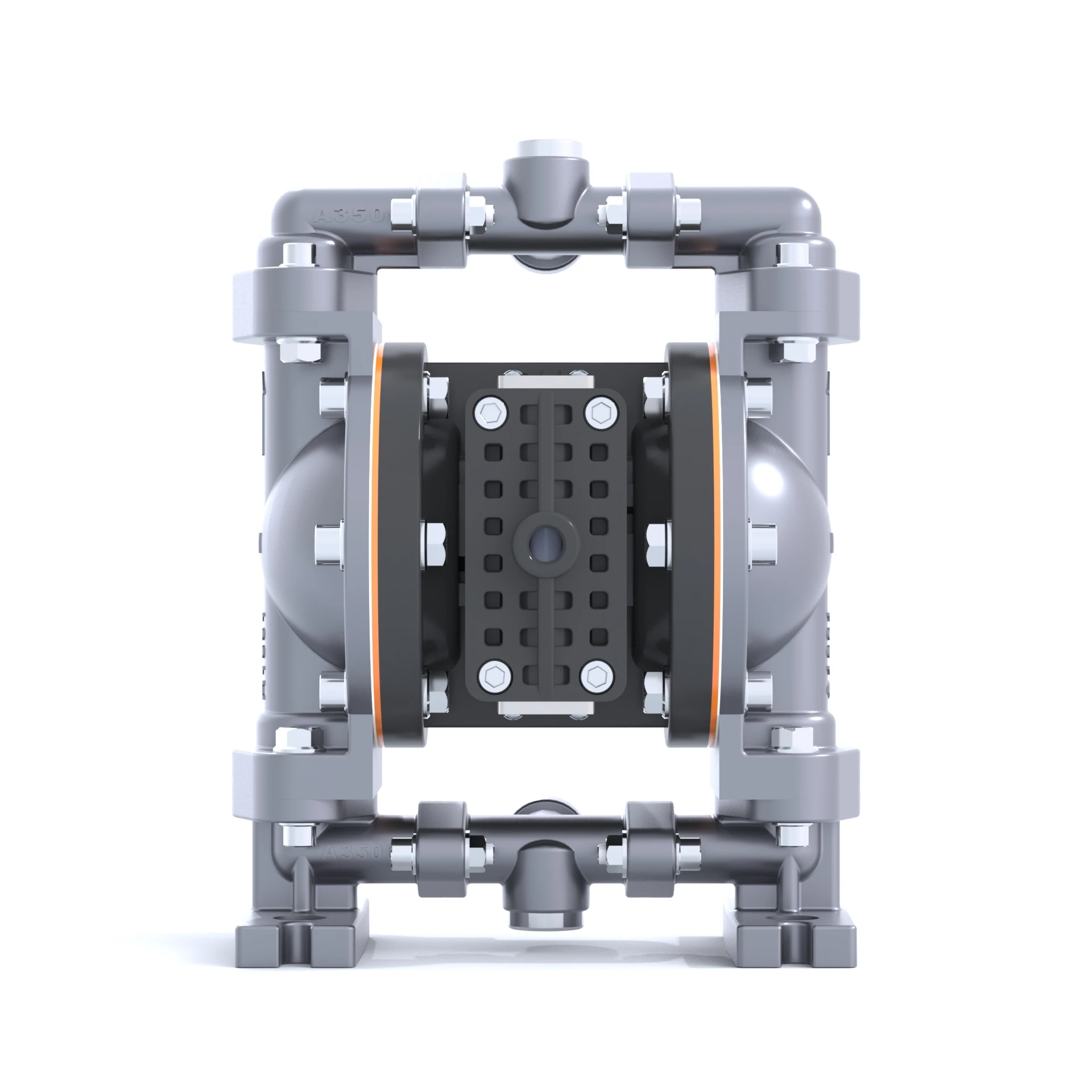

EXA8-A3-1

EXA8-A3-1 RAN Master Metal Series

EXA8-A3-1 model pump specifications

Technical Specifications

Ratio	1:1
Max. Fluid Outlet Pressure	8
Fluid Inlet / Outlet Size	1/4
Body Material	Aluminium
Diaphragm Material	TPEE (Hytrel®)
Max. Cycles Per Minute (CPM)	250
Maximum Flow Rate	18
Connection type	Threaded (NPT)
Air Inlet Size	1/4
Weight	1.6

EXA8-A3-1 is the result of RAN’s 30 years of expertise and craftsmanship. Field tests have proven its superiority, delivering higher flow rates and lower air consumption compared to many well-known brands.

Superior efficiency → Higher flow and lower air consumption.
Top-quality materials → All components made from the best materials in their category.
Full stroke diaphragm → Maximum efficiency and long service life.
More durable than competitors → Up to twice as thick body and parts compared to similar models.
Reliable connections → Maximum durability with stainless steel bolts.
Advanced diaphragm technology → Handcrafted, modified PTFE diaphragms provide a performance edge over competitors.
Outstanding suction performance → Larger particle handling and exceptional performance in both wet and dry suction.
Suitable for tough conditions → Reliable operation even under the most demanding industrial environments.

The RAN Master Series Metal Pump is not just a pump; it is a true masterpiece that delivers unmatched performance and long-lasting reliability even in the harshest conditions.
